Online Ordering Printer Setup (Star TSP 100IV Ethernet Receipt Printer)

Online Ordering Printer Setup (Star TSP 100IV Ethernet Receipt Printer)

Connect to power and load paper

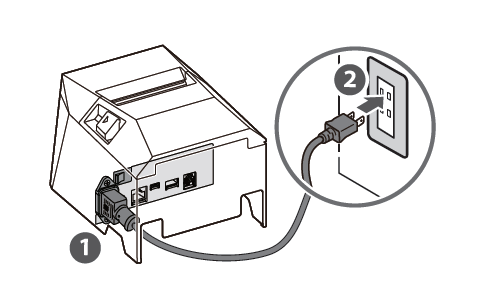

STEP 1. Connect the included power cable to the inlet on the back side of the printer (1). Connect the plug of the power cable to the outlet (2).

Printer Power Connection

Please note - your printer will be shipped with a roll already installed.

STEP 2. To install a paper roll into the printer, you will start by pushing the cover opening lever (1) and then opening the printer cover (2)

Paper Roll Cover

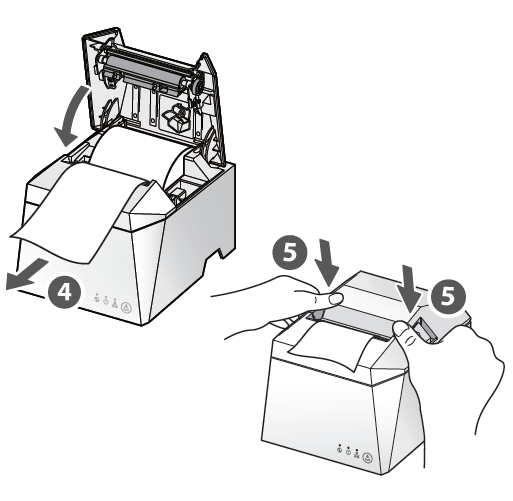

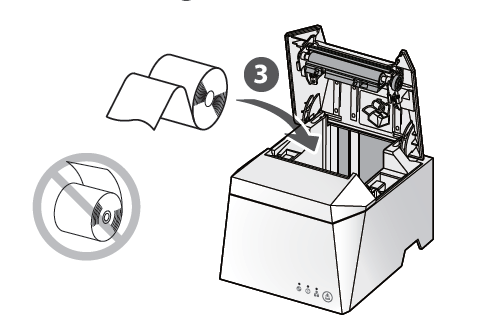

STEP 3. Insert a paper roll in the direction show in the illustration (3). Pull the end of the paper out straight (4), and push down both sides of the printer cover to close (5).




Connect an Ethernet cable

1. Connect an Ethernet cable to the LAN port on the printer. The LAN port is on the back of the printer close to the power plug.
2. Connect the other end of the Ethernet cable to an available port in your network switch or router.

System Printout

To do a system print out, the printer needs to be off, then hold the feed button (located on the front of the printer) and then press the power switch to on. You should keep holding the feed button down until the system config starts to print.

The system printout will confirm if the printer is connected to the internet.

.



Note: There is an add-on option to purchase a Buzzer for your printer if you want to get a sound notification every time an order prints.  Please contact support@spillover.com if you would like more info.
